12 Special Features

Previous11.2 VTOL Flight ModesNext13 Vehicle Type

Last updated 2 years ago

Was this helpful?

VTOL: Now VTOL support is added in KEA v2.3

Signed Logs: Signed logs are available now to secure the flight related logs.

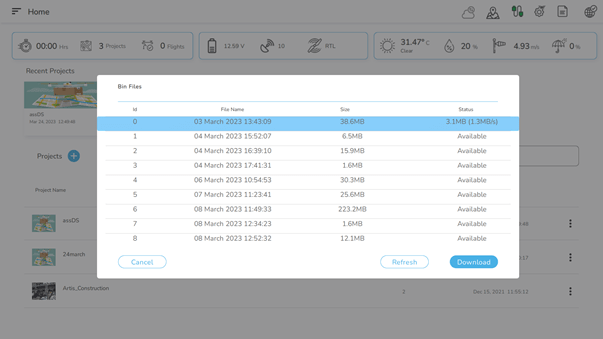

Bin File log download: Flight logs can be downloaded in bin format.

Joystick Support: Joystick can be configured using KEA v2.3. All the modes like RTL, brake, loiter, land can be set using joystick.

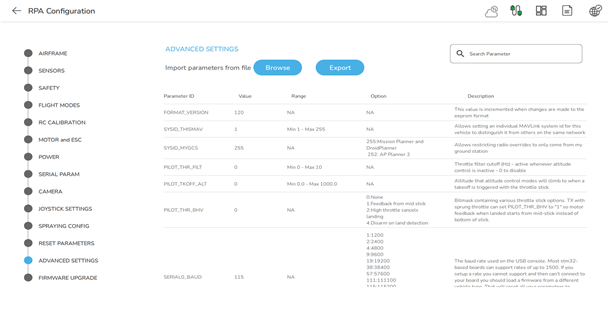

Parameter File Import/Export: Users can import/Export a parameter file, except for critical parameters.

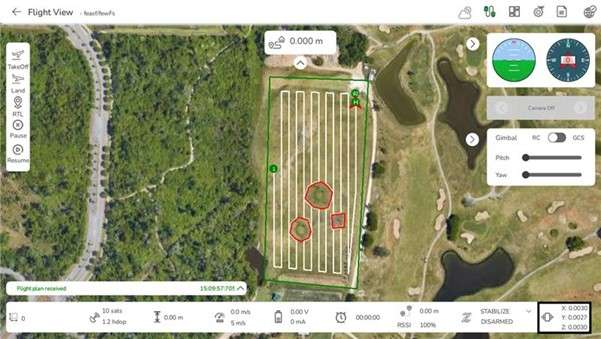

Obstacle Avoidance: Multiple obstacles can be avoided using KEA now.

RSSI on Fly view: RSSI, or “Received Signal Strength Indicator,” is a measurement of how well your device can hear a signal from an access point.

Vibrations on the fly view: Vibrations of drone can be seen on fly view itself.

Current reading on Fly view: Live current details can be seen during the flight.

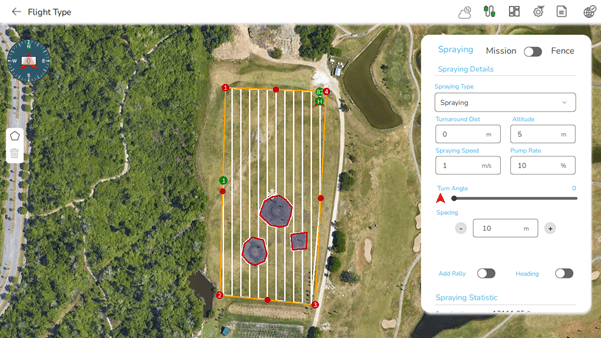

Import export KML of specific plan: KML import/export option of survey and spraying plan is available.

Link Loss Time

In this feature user can set the link loss time as per user’s choice. In communication link settings under advanced button user can see the disconnection time feature. User can set the value in seconds so that after setting the value the AeroGCS will check the connectivity of the device for that particular time and if no heartbeats are received then user will get a popup of port disconnected.

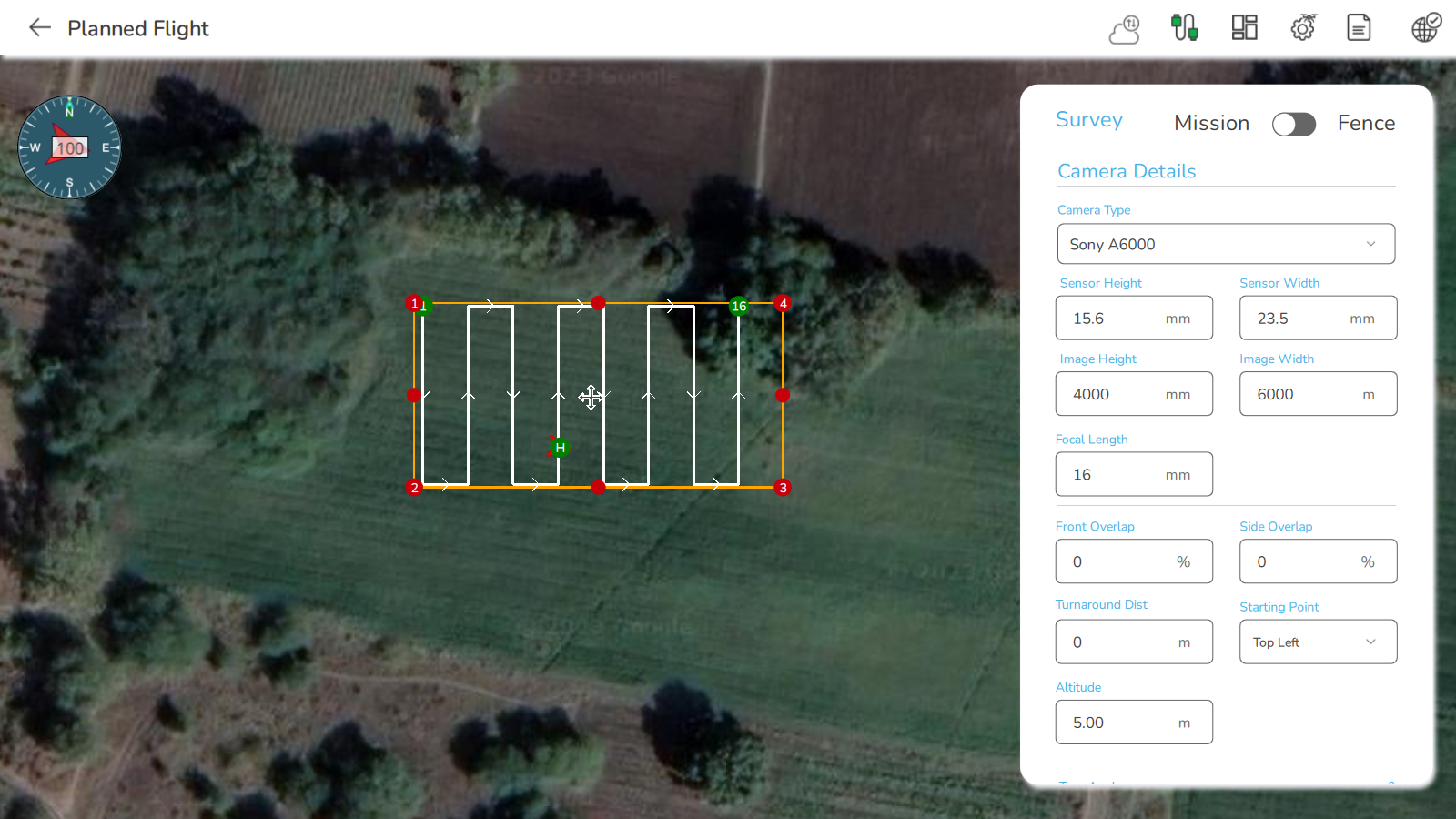

Directional Arrow

User can see the direction of the plan that the drone will follow. User can see the direction of each polyline and can know that in which direction the drone is going to fly.

Plan Continuation

In this feature user can continue the plan from the last point where the drone took RTL or land. In some conditions, the drone is not able to complete the flight due to a lack of battery or some failsafe. In that case, when we click on the resume button the drone will take off and start the flight from the last point where it took RTL or land.
